YOUR CAPTOP® ADVANTAGE: Best Price in the Market
Quality. Technology.

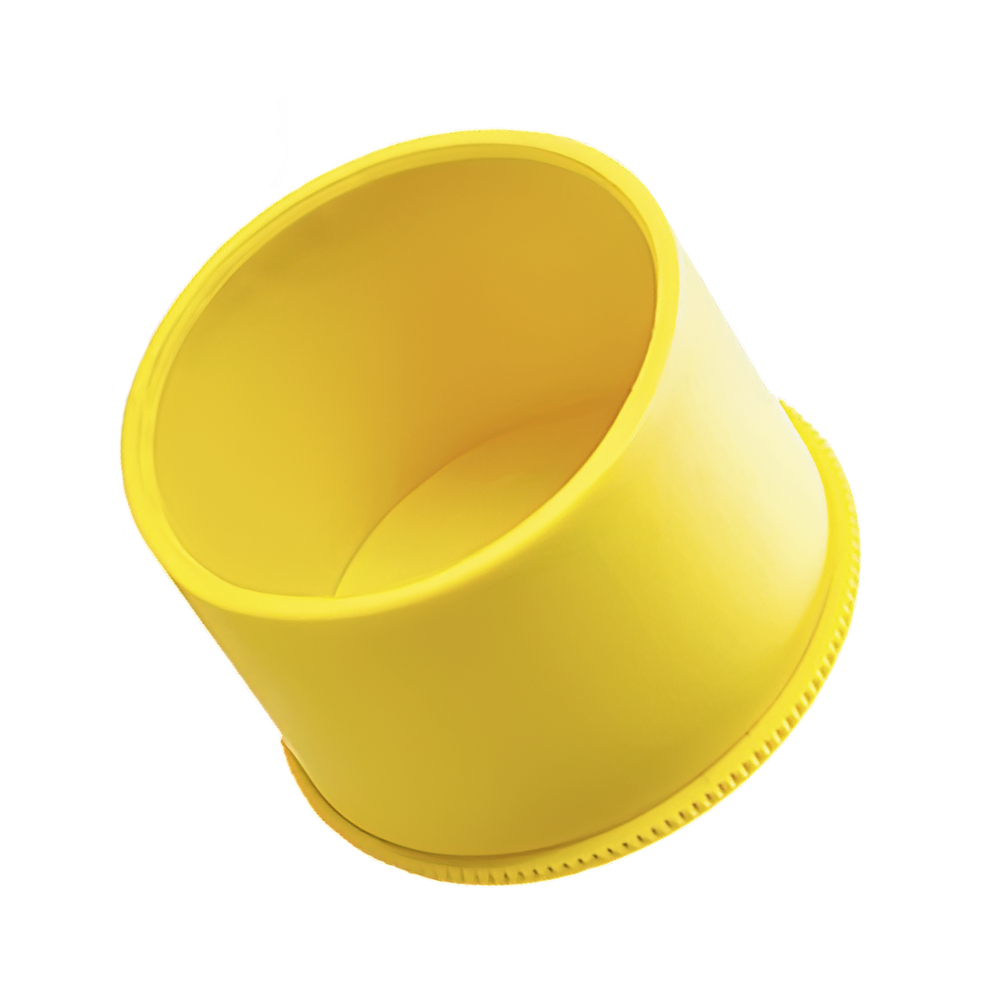

EP 201 TPE protective sleeves for protecting hose and
pipe ends, shafts and threaded bolts. Ideal for use in production, internal
post-treatment, assembly steps, storage and transportation.
Easy, low-abrasion disassembly. The particularly flexible protective sleeves
have a non-slip, knurled collar and are temperature-resistant from -50 °C to +150 °C.
They ensure precise protection at all times and bridge large tolerances. Your premium Protec price advantage. Consistently low prices.

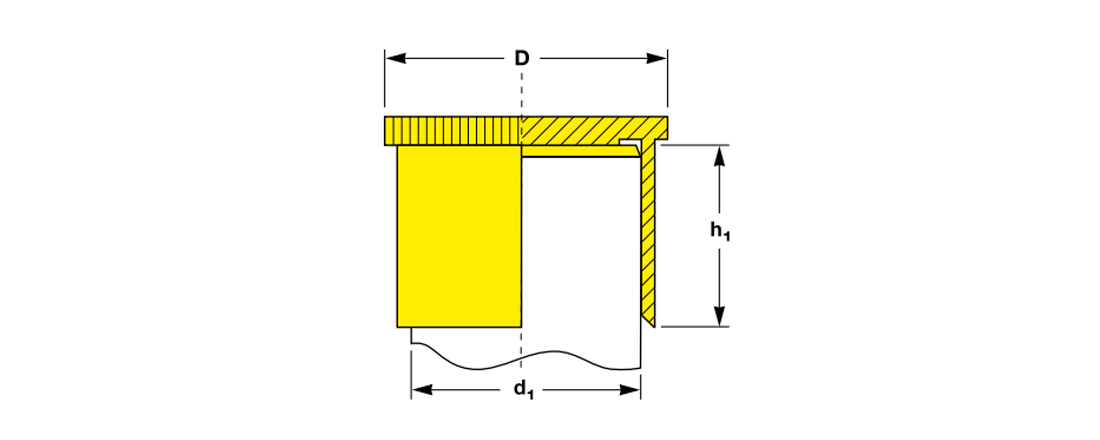

| External application d1 | h1 | D | Reference No. | Bookmark |
|---|
| 4.9 - 5.4 | 13.0 | 9.0 | EP 201/ R 5 × 13 | |
|---|---|---|---|---|
| 5.9 - 6.4 | 10.0 | 10.0 | EP 201/ R 6 × 10 | |
| 6.9 - 7.3 | 10.0 | 10.8 | EP 201/ R 7 × 10 | |
| 8.0 - 8.4 | 10.0 | 11.8 | EP 201/ R 8 × 10 | |
| 9.2 - 9.4 | 12.0 | 13.0 | EP 201/ R 9 × 10 | |
| 9.9 - 10.5 | 10.0 | 14.2 | EP 201/ R 10 × 10 | |
| 10.9 - 11.8 | 10.0 | 14.5 | EP 201/ R 11 × 10 | |
| 11.9 - 12.8 | 10.0 | 16.0 | EP 201/ R 12 × 10 | |
| 12.9 - 13.8 | 15.0 | 17.4 | EP 201/ R 13 × 20 | |
| 13.9 - 14.6 | 15.0 | 18.2 | EP 201/ R 14 × 15 | |
| 14.9 - 15.6 | 15.0 | 19.2 | EP 201/ R 15 × 15 | |
| 16.0 - 16.6 | 15.0 | 19.9 | EP 201/ R 16 × 15 | |
| 16.9 - 17.8 | 20.0 | 21.2 | EP 201/ R 17 × 20 | |
| 17.5 - 18.1 | 26.0 | 21.6 | EP 201/ R 17.6 × 26 | |
| 17.9 - 18.9 | 15.0 | 21.8 | EP 201/ R 18 × 15 | |
| 18.9 - 19.8 | 20.0 | 23.2 | EP 201/ R 19 × 20 | |
| 20.0 - 20.7 | 20.0 | 23.7 | EP 201/ R 20 × 20 | |
| 20.9 - 21.8 | 20.0 | 25.3 | EP 201/ R 21 × 20 | |
| 21.9 - 22.5 | 20.0 | 25.8 | EP 201/ R 22 × 20 | |
| 22.5 - 23.2 | 26.0 | 26.6 | EP 201/ R 22.6 × 26 | |
| 22.9 - 23.6 | 20.0 | 27.0 | EP 201/ R 23 × 20 | |
| 23.9 - 24.6 | 20.0 | 28.5 | EP 201/ R 24 × 20 | |
| 24.9 - 25.8 | 20.0 | 28.9 | EP 201/ R 25 × 20 | |
| 25.9 - 26.8 | 20.0 | 30.0 | EP 201/ R 26 × 20 | |
| 26.7 - 27.8 | 20.0 | 31.0 | EP 201/ R 27 × 20 | |
| 27.7 - 28.6 | 20.0 | 32.5 | EP 201/ R 28 × 20 | |
| 28.9 - 29.8 | 20.0 | 32.9 | EP 201/ R 29 × 20 | |
| 29.8 - 30.7 | 20.0 | 34.0 | EP 201/ R 30 × 20 | |
| 13.2 - 13.9 | 10.0 | 16.8 | EP 201/ G 1/4 | |
| 16.5 - 17.1 | 12.0 | 20.2 | EP 201/ G 3/8 | |
| 20.8 - 21.5 | 20.0 | 25.2 | EP 201/ G 1/2 | |
| 26.2 - 27.7 | 20.0 | 31.2 | EP 201/ G 3/4 | |
| 33.1 - 34.7 | 20.0 | 37.8 | EP 201/ G 1 |
| d1 | d2 | H | Reference No. |
|---|
| 4.9-5.4 | 13.0 | 9.0 | EP201/R5×13 | |
|---|---|---|---|---|
| 5.9-6.4 | 10.0 | 10.0 | EP201/R6×10 | |
| 6.9-7.3 | 10.0 | 10.8 | EP201/R7×10 | |
| 8.0-8.4 | 10.0 | 11.8 | EP201/R8×10 | |
| 9.2-9.4 | 12.0 | 13.0 | EP201/R9×10 | |
| 9.9-10.5 | 10.0 | 14.2 | EP201/R10×10 | |
| 10.9-11.8 | 10.0 | 14.5 | EP201/R11×10 | |
| 11.9-12.8 | 10.0 | 16.0 | EP201/R12×10 | |
| 12.9-13.8 | 15.0 | 17.4 | EP201/R13×20 | |
| 13.9-14.6 | 15.0 | 18.2 | EP201/R14×15 | |
| 14.9-15.6 | 15.0 | 19.2 | EP201/R15×15 | |
| 16.0-16.6 | 15.0 | 19.9 | EP201/R16×15 | |
| 16.9-17.8 | 20.0 | 21.2 | EP201/R17×20 | |
| 17.5-18.1 | 26.0 | 21.6 | EP201/R17.6×26 | |
| 17.9-18.9 | 15.0 | 21.8 | EP201/R18×15 | |
| 18.9-19.8 | 20.0 | 23.2 | EP201/R19×20 | |
| 20.0-20.7 | 20.0 | 23.7 | EP201/R20×20 | |
| 20.9-21.8 | 20.0 | 25.3 | EP201/R21×20 | |
| 21.9-22.5 | 20.0 | 25.8 | EP201/R22×20 | |
| 22.5-23.2 | 26.0 | 26.6 | EP201/R22.6×26 | |
| 22.9-23.6 | 20.0 | 27.0 | EP201/R23×20 | |
| 23.9-24.6 | 20.0 | 28.5 | EP201/R24×20 | |
| 24.9-25.8 | 20.0 | 28.9 | EP201/R25×20 | |
| 25.9-26.8 | 20.0 | 30.0 | EP201/R26×20 | |
| 26.7-27.8 | 20.0 | 31.0 | EP201/R27×20 | |
| 27.7-28.6 | 20.0 | 32.5 | EP201/R28×20 | |
| 28.9-29.8 | 20.0 | 32.9 | EP201/R29×20 | |
| 29.8-30.7 | 20.0 | 34.0 | EP201/R30×20 | |
| 13.2-13.9 | 10.0 | 16.8 | EP201/G1/4 | |
| 16.5-17.1 | 12.0 | 20.2 | EP201/G3/8 | |
| 20.8-21.5 | 20.0 | 25.2 | EP201/G1/2 | |
| 26.2-27.7 | 20.0 | 31.2 | EP201/G3/4 | |
| 33.1-34.7 | 20.0 | 37.8 | EP201/G1 |
PROTEC products and specifications are subject to improvement and change without notice.
CAPTOP® EP 201 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.
Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.
For protecting hose and pipe ends, shafts and threaded bolts.
The new protective sleeves from the Captop EP 201 TPE standard series provide protection thanks to the very flexible material. "Thermoplastic polyolefin elastomer (TPE)" even on uneven profiles.
The TPE material is resistant to hot
water and weak acids and bases.
The protective sleeves do not
contain any plasticizers.
+ 33 serial variables
+ From G ¼ to G 1
+ Further dimensions are under construction
Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
