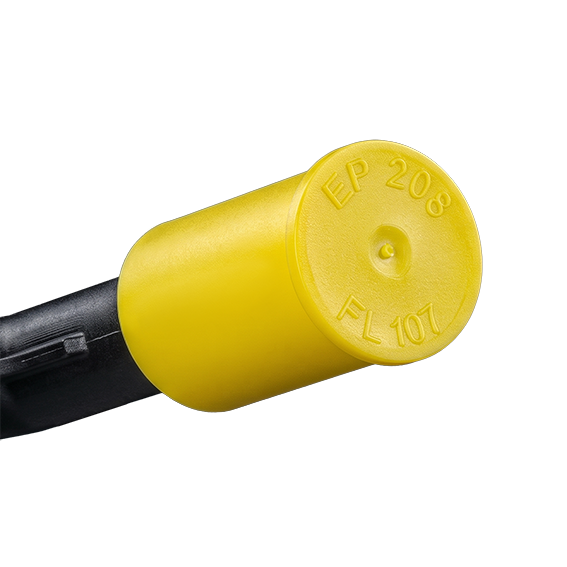

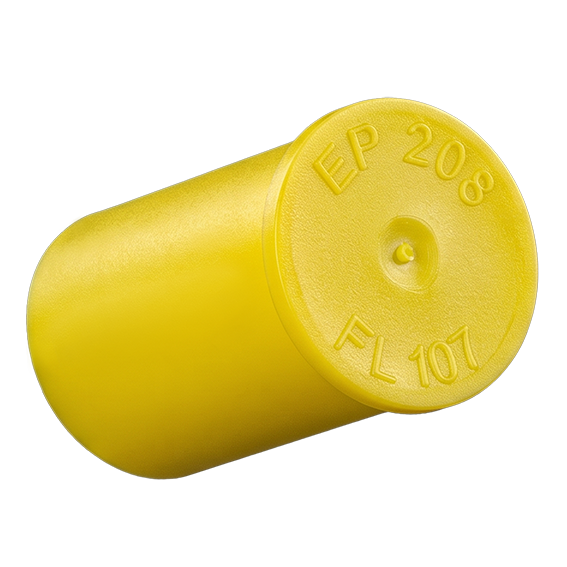

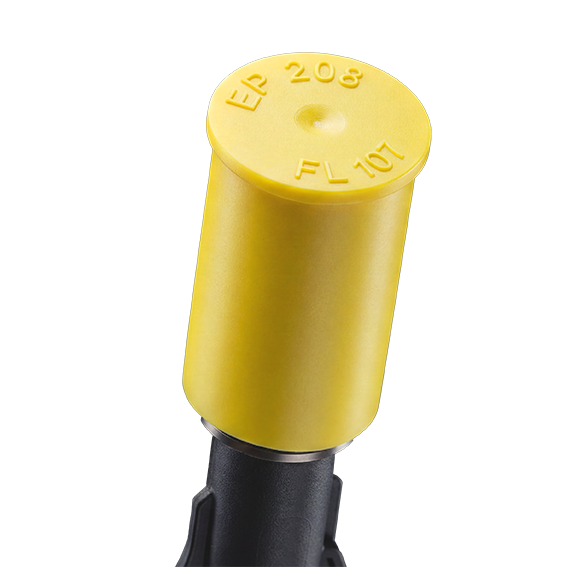

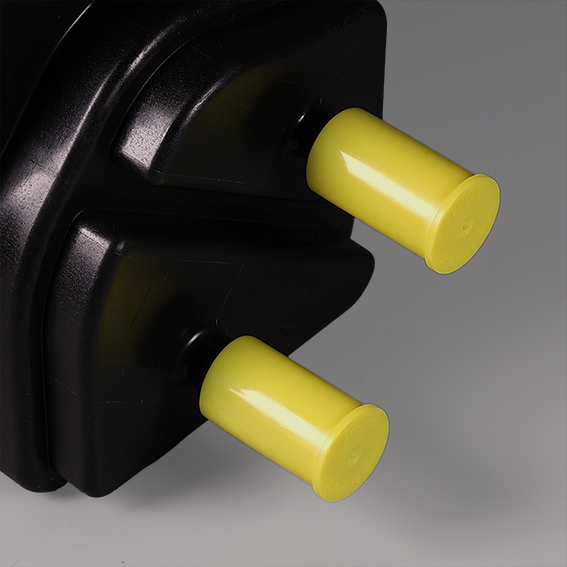

EP 208 protective caps are designed for bolts, pins, external threads and SAE connectors.
The flexible axial ribs accommodate a range of different diameters.
The spacing between the ribs allows air to flow in and out while the cap is fitted.
Std. Color: yellow
Material: 100% recyclable, single-grade LLDPE

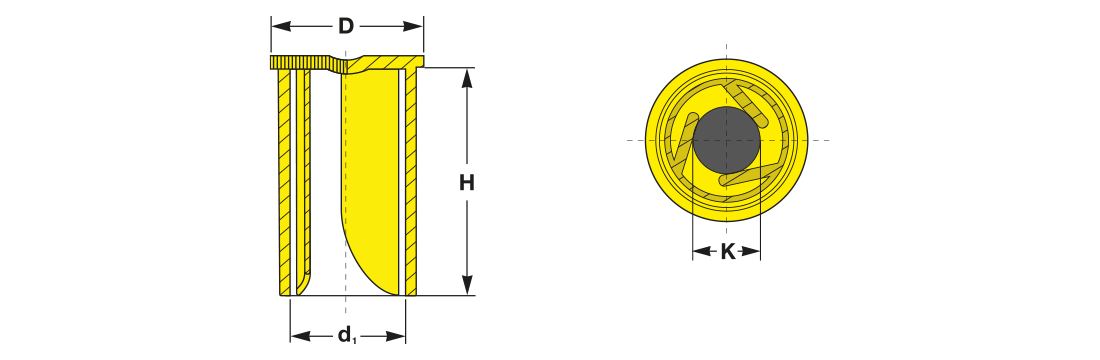

| K min | K max | D | H | d1 | Reference No. | Bookmark |
|---|
| 5.2 | 6.7 | 12.0 | 25.0 | 8.0 | EP 208 / FL 67 | |
|---|---|---|---|---|---|---|
| 5.8 | 7.3 | 13.0 | 25.0 | 9.0 | EP 208 / FL 73 | |
| 6.5 | 7.7 | 14.0 | 32.0 | 10.0 | EP 208 / FL 77 | |
| 6.5 | 8.0 | 14.0 | 20.0 | 10.0 | EP 208 / FL 80 | |
| 7.8 | 10.7 | 17.0 | 25.0 | 13.3 | EP 208 / FL 107 | |
| 9.3 | 12.3 | 18.5 | 23.0 | 14.3 | EP 208 / FL 123 | |
| 11.8 | 15.0 | 21.0 | 25.0 | 17.3 | EP 208 / FL 150 |
| K min | K max | D | H | d1 | Reference No. |
|---|
| 5.2 | 6.7 | 12.0 | 25.0 | 8.0 | EP 208 / FL 67 | |
|---|---|---|---|---|---|---|
| 5.8 | 7.3 | 13.0 | 25.0 | 9.0 | EP 208 / FL 73 | |
| 6.5 | 7.7 | 14.0 | 32.0 | 10.0 | EP 208 / FL 77 | |
| 6.5 | 8.0 | 14.0 | 20.0 | 10.0 | EP 208 / FL 80 | |
| 7.8 | 10.7 | 17.0 | 25.0 | 13.3 | EP 208 / FL 107 | |
| 9.3 | 12.3 | 18.5 | 23.0 | 14.3 | EP 208 / FL 123 | |
| 11.8 | 15.0 | 21.0 | 25.0 | 17.3 | EP 208 / FL 150 |
PROTEC products and specifications are subject to improvement and change without notice.
CAPTOP® EP 208 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.
Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.
