YOUR CAPTOP® ADVANTAGE: Best Price in the Market

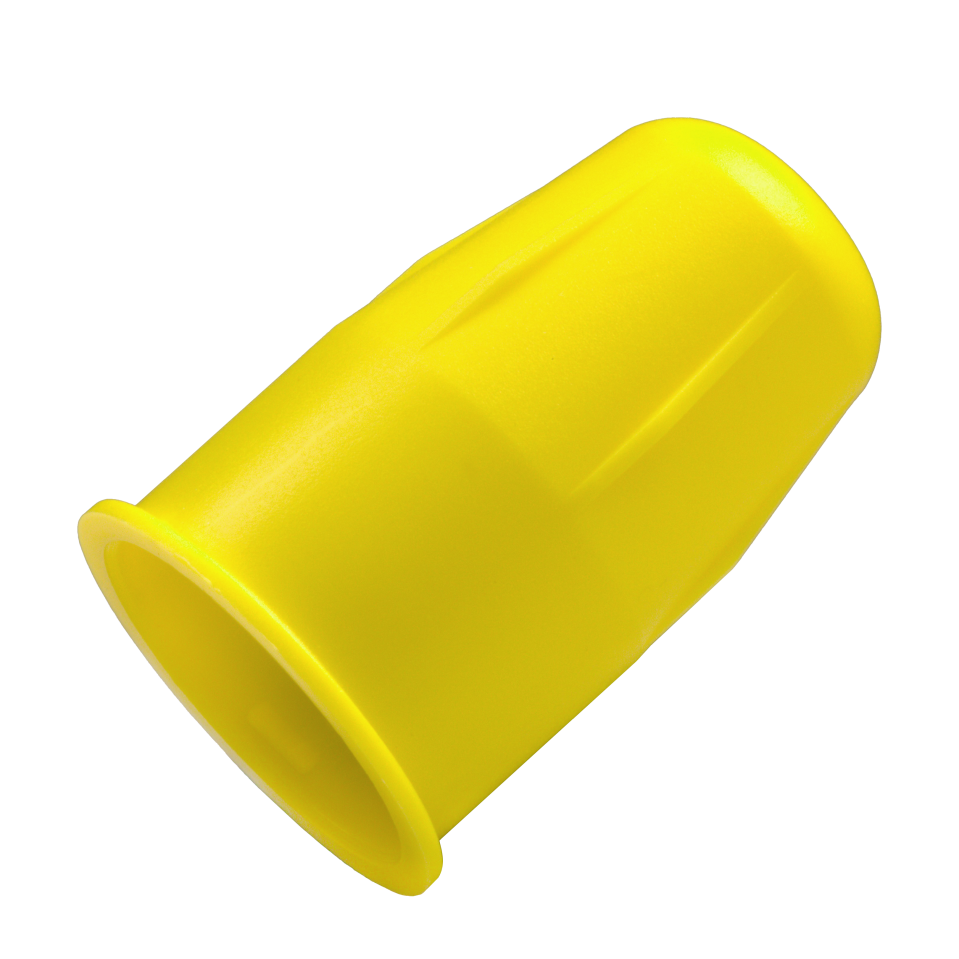

CAPTOP ® SAE Quick Connector
Caps EP 214. Captop EP 214 are designed to meet the high requirements and to protect
the connection area of SAE Quick
Connectors.
Key features
of the Captop EP 214 series
Innovative Design: An engineering-based, grippy design to deliver
excellent protection results in this
specific application.
Robust construction: Made from
high-quality materials for long-lasting use.
Cost-effectiveness: This Captop series also offers the best price-performance ratio on the market at consistently low prices.

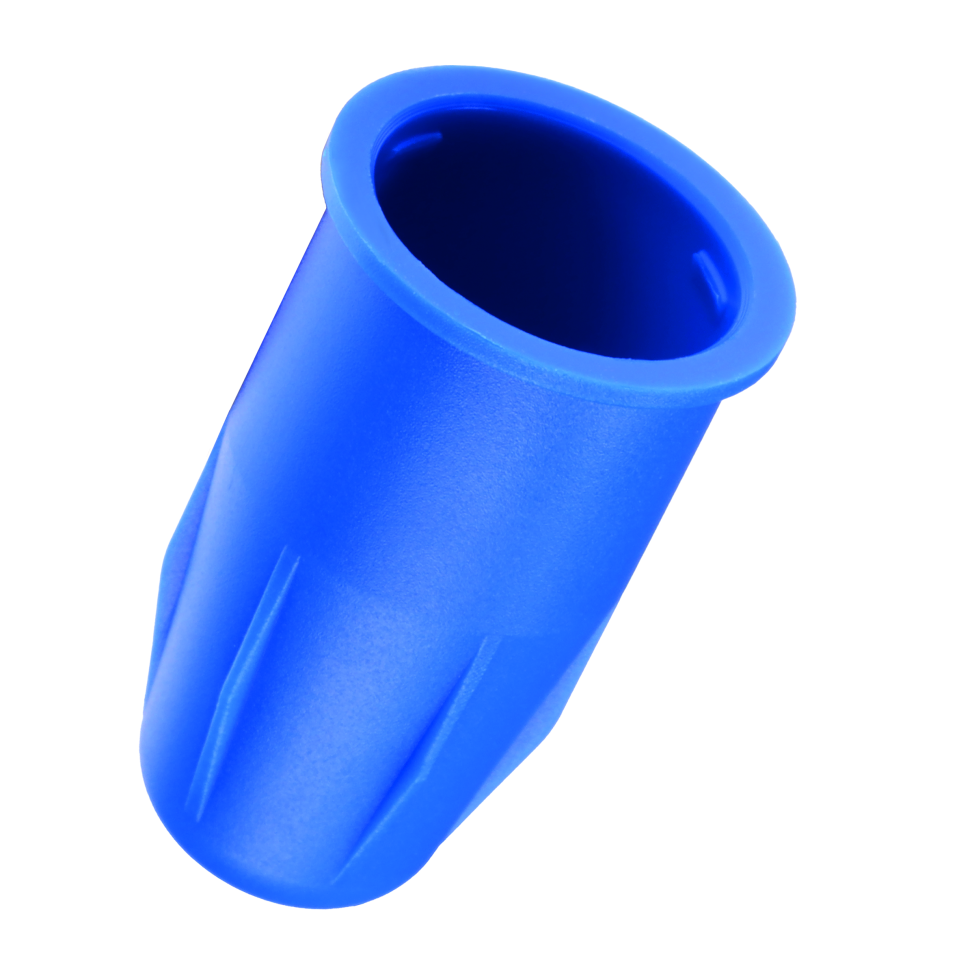

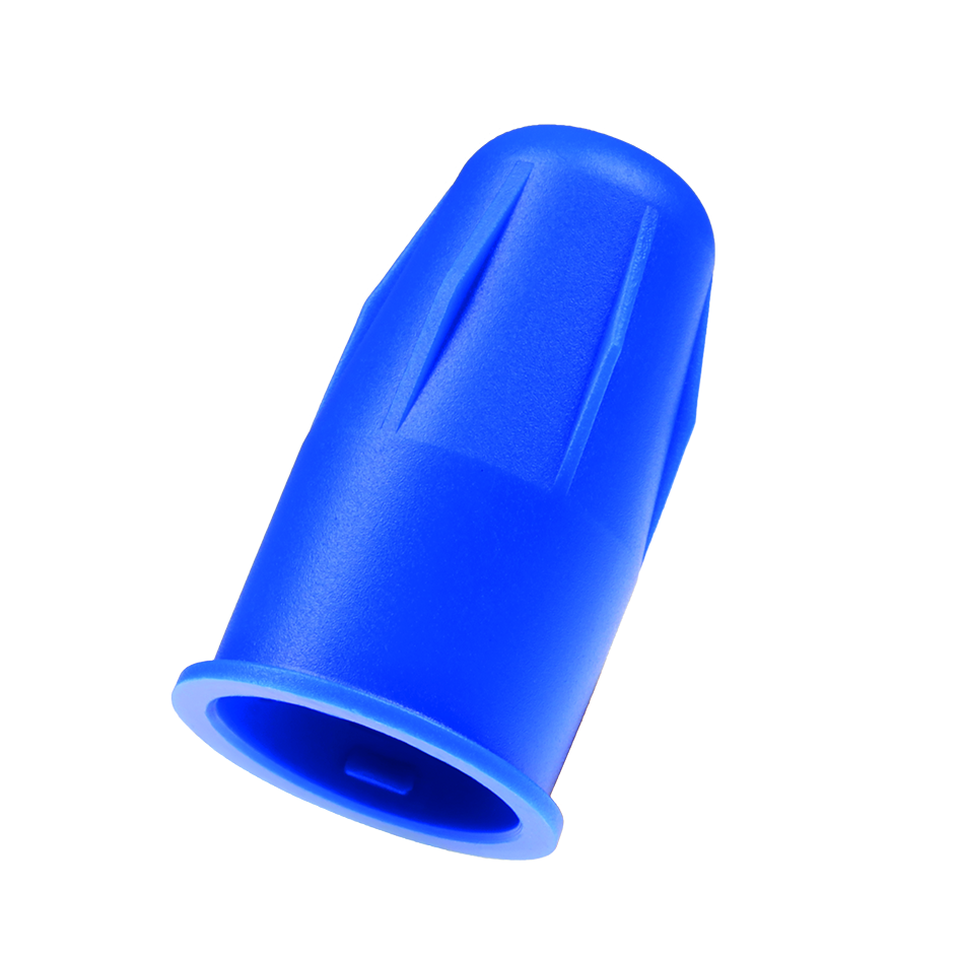

Std. Color: yellow, optionally recycling blue
Material: virgin-grade and recyclable LLD-PE

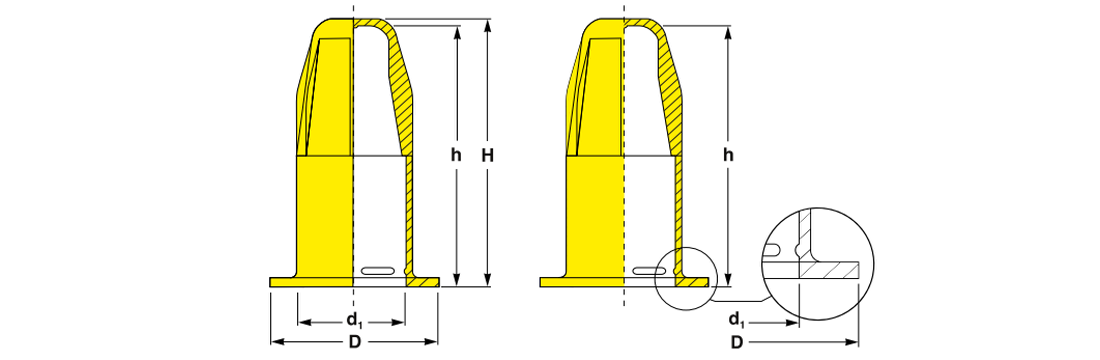

| for SAE plugs nominal width | d1 | D | h | H | Reference No. | Bookmark |
|---|
| 6.5 | 8.8 | 14.7 | 22.8 | 23.6 | EP 214/ PP 6.35 | |
|---|---|---|---|---|---|---|
| 8 | 10.9 | 14.7 | 24.7 | 25.7 | EP 214/ PP 8 | |
| 10 | 13.4 | 17.2 | 27.8 | 28.8 | EP 214/ PP 10 | |
| 12 | 16.5 | 20.3 | 29.6 | 30.6 | EP 214/ PP 12 | |
| 18 | 21.0 | 24.8 | 29.6 | 30.6 | EP 214/ PP 18 |
| for SAE plugs | d1 | D | h | H | Reference No. |
|---|
| 6.5 | 8.8 | 23.6 | 14.7 | EP 214/ PP 6.35 | ||
|---|---|---|---|---|---|---|
| 8 | 10.9 | 25.7 | 14.7 | EP 214/ PP 8 | ||
| 10 | 13.4 | 28.8 | 17.2 | EP 214/ PP 10 | ||
| 12 | 16.5 | 30.6 | 20.3 | EP 214/ PP 12 | ||
| 18 | 21.0 | 30.6 | 24.8 | EP 214/ PP 18 |
PROTEC products and specifications are subject to improvement and change without notice.
CAPTOP® EP 214 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.
Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.
Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.
