YOUR CAPTOP® ADVANTAGE: Best Price in the Market
Quality.

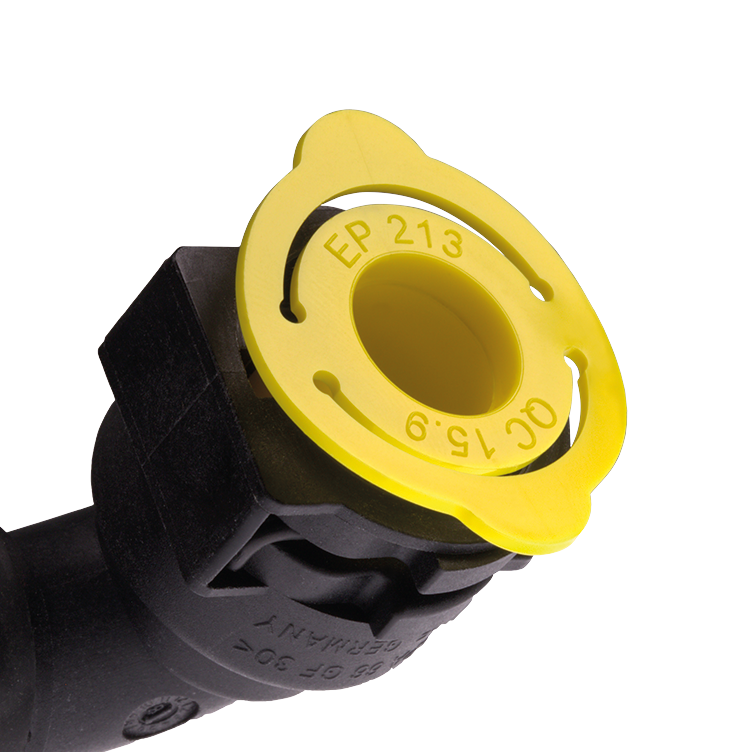

The QC plugs are clamped gently and securely onto the internal sealing rings of the SAE quick connector coupling.
QC plugs are also equipped with a pull ring tab all the way around for easy and convenient removal.

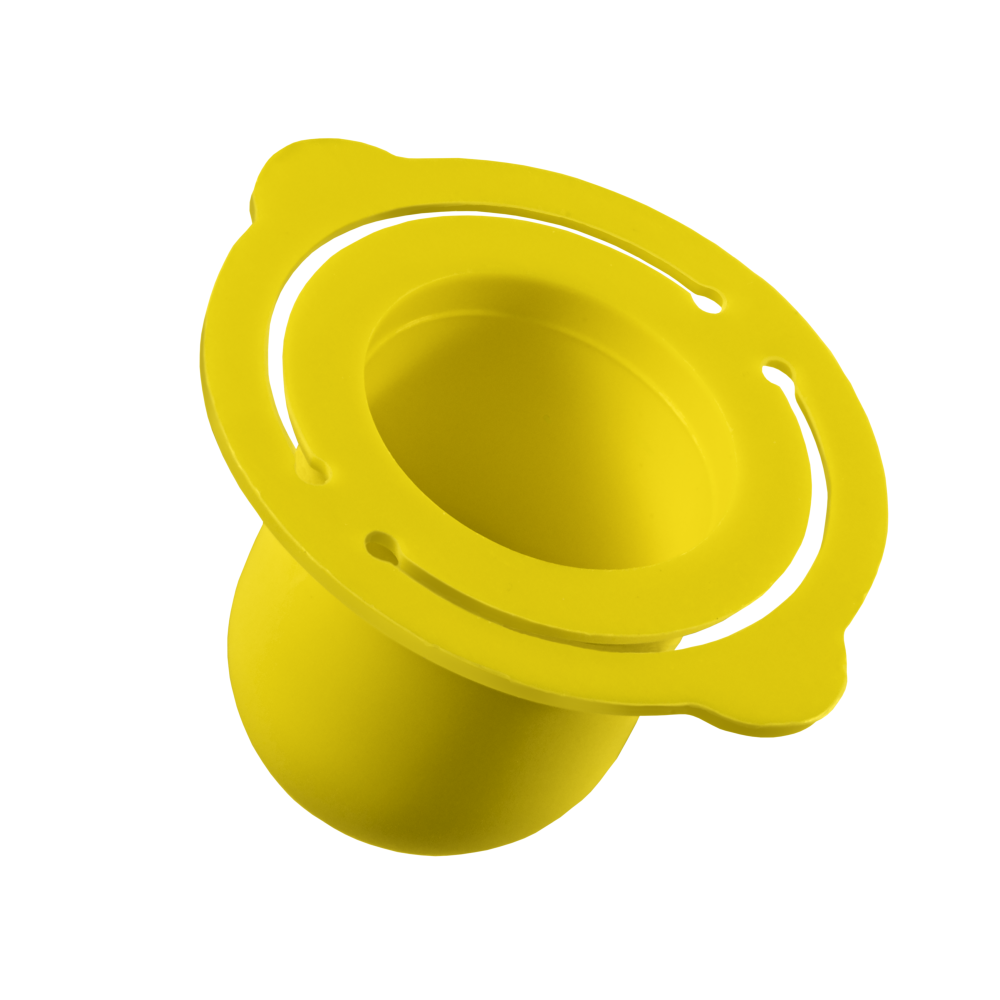

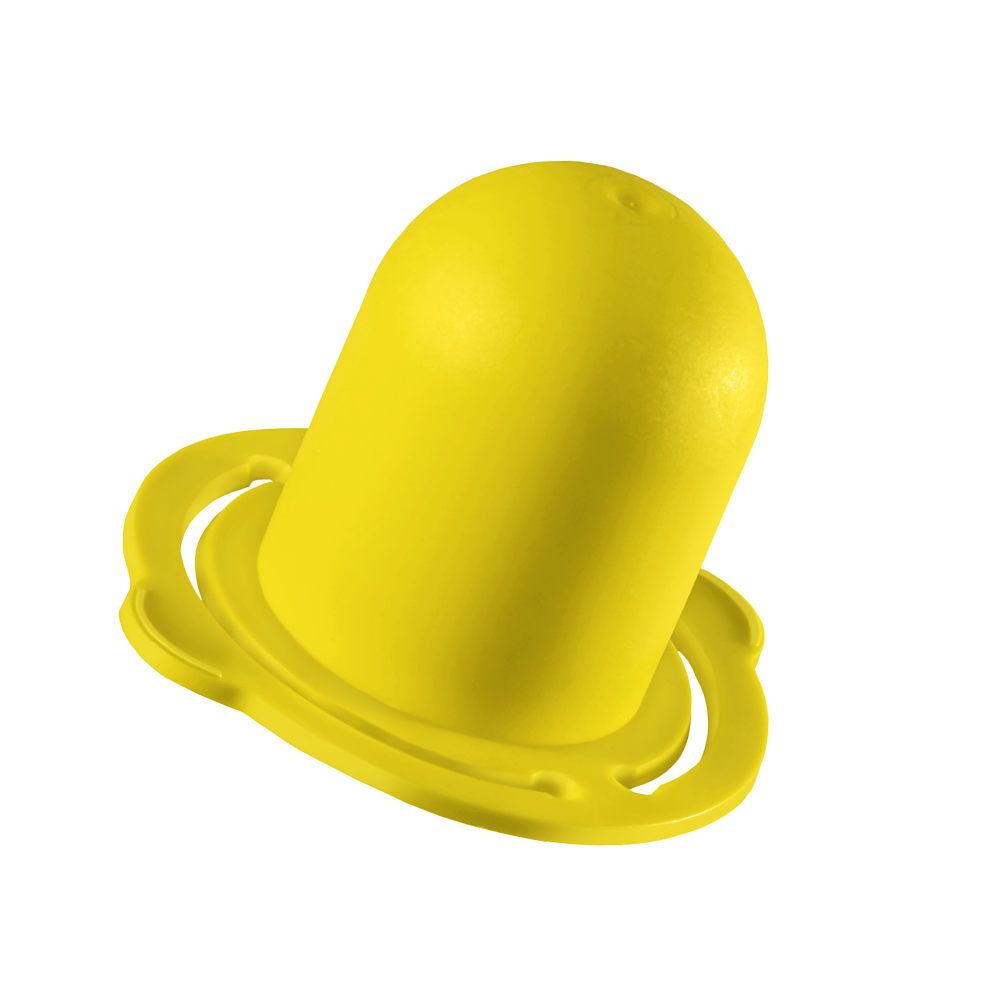

CAPTOP ® QC-Plugs EP 213. The QC-Plugs EP 213 are suitable for protecting SAE Quick
Connector couplings, based on SAE J2044. QC-Plugs EP 213 seal
SAE quick couplings perfectly in all
nominal widths.
SAE J2004.
This QC plug is designed in accordance with SAE J2004.
It protects media-carrying lines
from contamination and damage
until final assembly. Available for all
SAE nominal widths.
Quick disassembly.

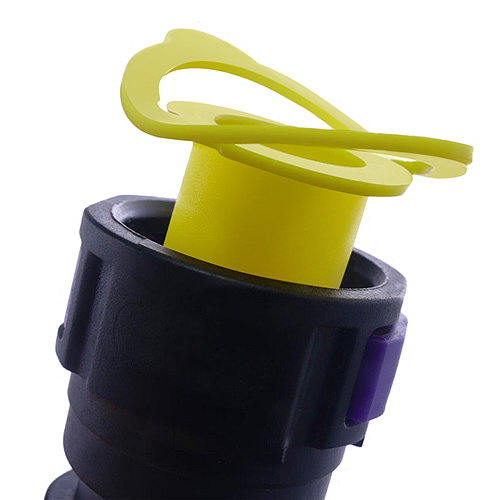

The radially mounted pull ring
tabs allow for easy and quick
removal of the plug. To disassemble, simply fold the tab halves up to
form a handle
Std. Color: yellow
Material: virgin-grade and recyclable LLD-PE

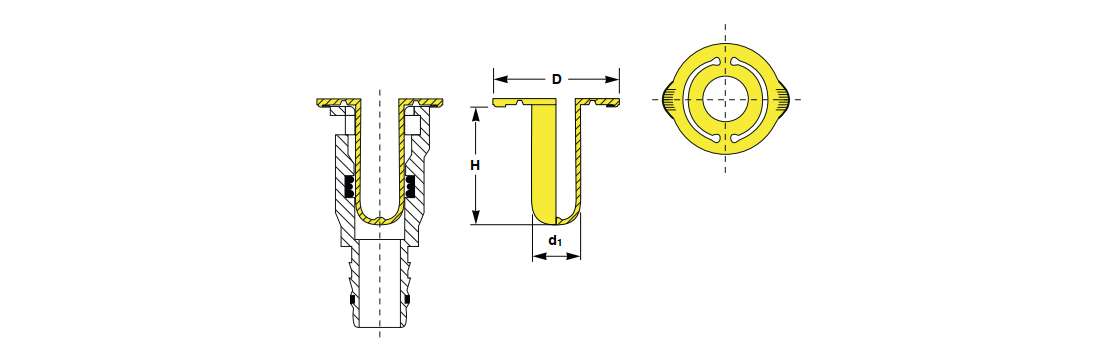

| for SAE joints nominal width mm | for SAE joints nominal width Inch | d1 | D | H | Reference No. | Bookmark |
|---|
| 6.35 | .1/4 | 6.3 | 31.0 | 30.0 | EP 213 QC / 6.35 | |
|---|---|---|---|---|---|---|
| 8.0 | .5/16 | 7.9 | 32.0 | 30.0 | EP 213 QC / 8 | |
| 9.5 | .3/8 | 9.4 | 32.0 | 32.0 | EP 213 QC / 9.5 | |
| 10.0 | .7/16 | 9.9 | 34.0 | 32.0 | EP 213 QC / 10 | |
| 12.0 | 11.8 | 34.0 | 35.0 | EP 213 QC / 12 | ||
| 12.7 | .1/2 | 12.6 | 35.0 | 35.0 | EP 213 QC / 12.7 | |
| 15.9 | .5/8 | 15.8 | 37.0 | 32.0 | EP 213 QC / 15.9 | |
| 18.0 | 17.9 | 37.0 | 32.0 | EP 213 QC / 18.0 | ||
| 24.0 | 23.9 | 46.0 | 29.0 | EP 213 QC / 24.0 |
| Dim mm | Dim Inch | d1 | D | H | Reference No. |
|---|
| 6.35 | .1/4 | 6.3 | 31.0 | 30.0 | EP 213 QC / 6.35 | |
|---|---|---|---|---|---|---|
| 8.0 | .5/16 | 7.9 | 32.0 | 30.0 | EP 213 QC / 8 | |
| 9.5 | .3/8 | 9.4 | 32.0 | 32.0 | EP 213 QC / 9.5 | |
| 10.0 | .7/16 | 9.9 | 34.0 | 32.0 | EP 213 QC / 10 | |
| 12.0 | 11.8 | 34.0 | 35.0 | EP 213 QC / 12 | ||
| 12.7 | .1/2 | 12.6 | 35.0 | 35.0 | EP 213 QC / 12.7 | |
| 15.9 | .5/8 | 15.8 | 37.0 | 32.0 | EP 213 QC / 15.9 | |
| 18.0 | 17.9 | 37.0 | 32.0 | EP 213 QC / 18.0 | ||
| 24.0 | 23.9 | 46.0 | 29.0 | EP 213 QC / 24.0 |
PROTEC products and specifications are subject to improvement and change without notice.
CAPTOP® EP 213 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.
Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.
Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
